LIVE START-UP CIRCUIT FOR BANDGAP REFERENCE (BGR)

Patent no: 369348

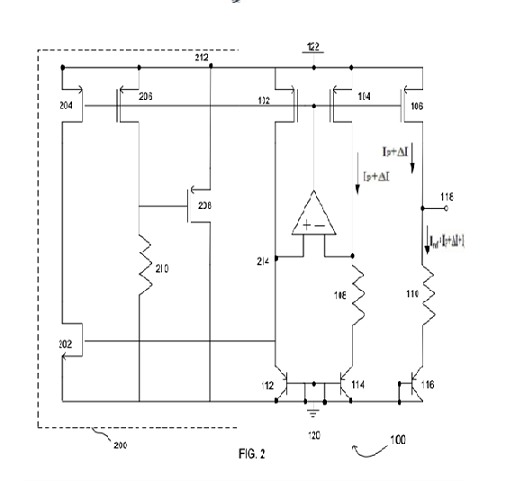

The patent 369348 discloses a live start-up circuit for a Bandgap Reference (BGR) for providing an even distribution of a Monte Carlo analysis. The circuit includes a plurality of transistors and a resistor. A current across transistors is given as a gate voltage to the transistor. The voltage from the transistor is given to node B of the BGR for keeping a BGR operations ON through an ON period of BGR for the even distribution of the Monte Carlo analysis and for compensation of Temperature Coefficient (TC).
